microAIR Informative Comparison Guide

by Cascade Healthcare Solutions


Posted on 25th , July 2013


This Informative Comparison Guide will cover Invacare's microAIR 50, 60, 80 and 90 Series Mattresses. For further information, please view the product page for each mattress listed at the bottom of each section.





90 Series microAIR Mattress

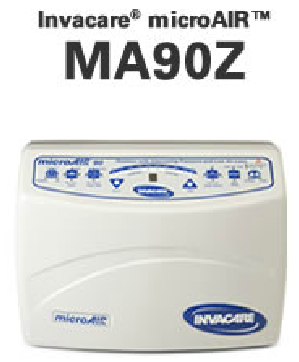

MA90Z Pump

  • Lateral rotation with on demand low air loss and alteration pressure

  • Utilizes a compressor

  • Offers turn angles up to 30 degrees and choice of four alternation cycle times

  • Constant pressure monitoring

  • Also includes lockout features, max inflate and alarms

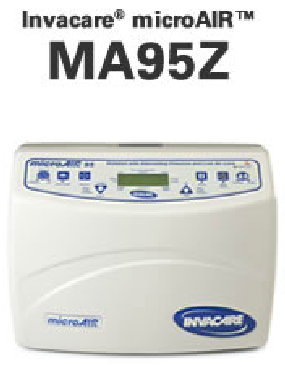

MA95Z Pump

  • Lateral rotation with true low air loss and alternating pressure

  • Utilizes a blower system

  • Offers customizable turn angles up to 45 degrees and customizable time settings

  • Constant pressure monitoring

  • Also includes lockout features, max inflate and alarms


Mattress

These mattresses recenter the patient between rotations. In addition, the cells are constructed of a patented z-cell design to allow for a more subtle and comfortable turn. Also equipped with constant air pressure side bolsters to help contain the patient on the mattress.

Wireless Auto Fowler

When the bed is articulated 45 degrees, the transmitter in the head section of the mattress signals the control unit to increase the pressure in the mattress to prevent the patient from bottoming out. This saves the caregiver time and effort to manually adjust the pressure when the patient wants to sit up.

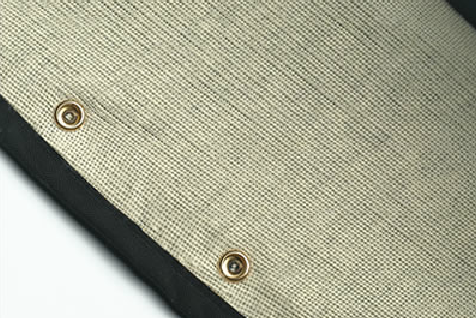

Fire Sock & Cover

An added safety feature to all of our powered mattresses is a sewn in fire sock. All of the mattresses are compliant with federal fire regulations, meeting 16 CFR 1633 and 16 CFR 1632  standards.

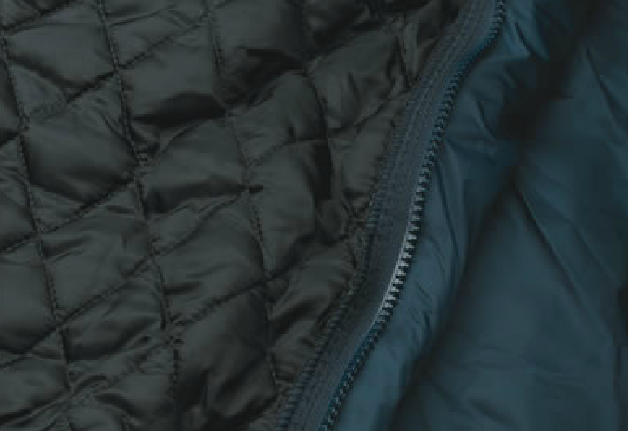

The MA90Z cover is made of urethane with a honeycomb layer, while the MA95Z is a urethane four way stretch quilted cover. Both move with the patient to prevent friction and shear, and are anti-microbial, fluid resistant and vapor permeable.

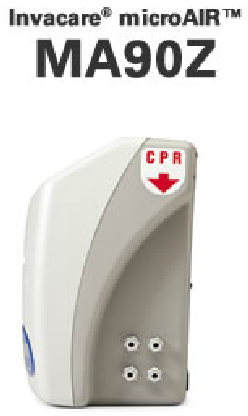

MA90Z Pump Side View

The MA90Z uses a ninety degree, quick hose connector that simplifies set up with one motion. Easily snaps into place with a secure connection. The quick release hose can also be used as a CPR release.

MA95Z Pump Side View

The MA95 Z has a ninety degree, magnetic hose connector that simplifies setup and acts as a CPR release. Simple to use and easy to connect.

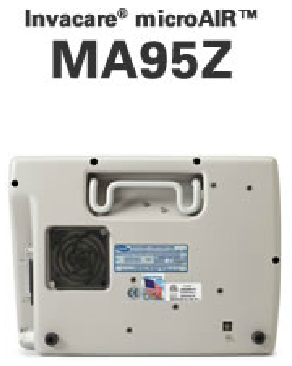

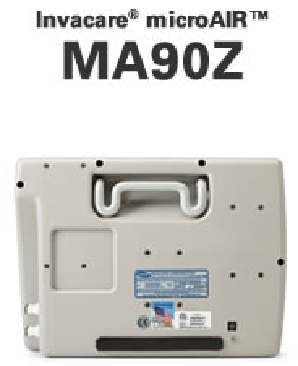

Backside View of Power Unit

The power unit securely fits overtop bed ends using the durable bed hook which slides out from the unit. The back side of the power unit also contains rubber stoppers to hold the unit in place. The MA95Z has a filter that can be easily removed to clean. Each model contains the serial number on the back and proudly displays a "Made in the USA" sticker.


Power Unit Plugin

Power is generated by inserting the cable into the plug on the left hand side of the unit. The replaceable fuses are also contained on this side.


For more specific product information, visit the MA90Z product page or MA95Z product page.




80 Series Mattress


MA80 Pump

  • True low air loss mattress replacement system

  • Choice of static or pulse setting available

  • Powerful Blower system with high volume of air output

  • Controller technology monitors the blower speed to maintain the appropriate surface pressure

  • Max inflate feature for easy transfers with visual and audible alarm

  • Lockout feature to prevent accidental adjustments

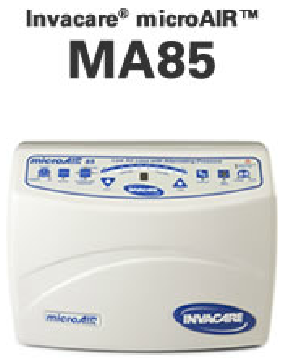

MA85 Pump

  • True low air loss mattress replacement system with alternating pressure

  • 4 alternating pressure times

  • Powerful Blower system with high volume of air output

  • Controller technology monitors the blower speed to maintain the appropriate surface pressure

  • Max inflate feature for easy transfers with visual and audible alarm

  • Lockout feature to prevent accidental adjustments


Mattress

To ensure the comfort of the patient, the mattress is constructed with durable, high quality materials. It is equipped with many safety features for the patient and caregiver. The 2" safety foam prevents the patient from bottoming out and the sewn in fire socks complies with federal fire regulations. The cover on the MA80 is made of breathable quilted nylon, while the MA85 is a urethane four way stretch quilted top. Both move with the patient to guard against friction and shear. Along with it being anti-microbial, fluid-resistant and vapor permeable, the microAIR  80 series provides optimal therapy.


Wireless Auto Fowler

When the bed is articulated 45 degrees, the transmitter in the head section of the mattress signals the control unit to increase the pressure in the mattress to prevent the patient from bottoming out. This saves the caregiver time and effort to manually adjust the pressure when the patient wants to sit up.

Fire Sock

An added safety feature to all of our powered mattresses is a sewn in fire sock. All of the mattresses are compliant with federal fire regulations, meeting 16 CFR 1633 and 16 CFR 1632  standards.


MA80 Pump Side View

The MA80 uses a single quick connector that simplifies set up with one motion. Easily secures into place for strong connection. The quick release hose can also be used as a CPR release.

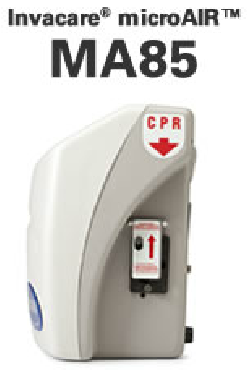

MA85 Pump Side View

The MA85 has a ninety degree, magnetic hose connector that simplifies set up and acts as a CPR release. Simple to use and easy to connect.



Backside View of Power Unit

The power unit securely fits overtop bed ends using the durable bed hook which slides out from the unit. The back side of the power unit also contains rubber stoppers to hold the unit in place. The filter can be easily removed to clean. Each model contains the serial number on the back and proudly displays a "Made in the USA" sticker.


Power Unit Plugin

Power is generated by inserting the cable into the plug on the left hand side of the unit. The replaceable fuses are also contained on this side.


For more specific product information, visit the MA80 product page or MA80 Bariatric product page. Also visit the MA85 standard and bariatric product page.




60 Series Mattress

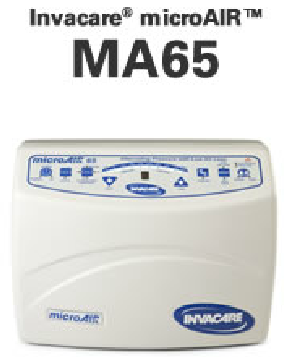

MA65 Pump

  • Alternating pressure and on-demand low air loss mattress replacement system

  • 10" mattress with a large, more powerful compressor

  • Choice of four alternating pressure cycles of static therapy

  • Max inflate feature for easy transfers and lockout feature to prevent accidental adjustments

  • Constant pressure monitoring

Backside View of Power Unit

The power unit securely fits overtop bed ends using the durable holder which slides out from the unit. The backside power unit also contains rubber stoppers to hold the unit in place. Each model contains the serial number on the back and proudly displays a "Made in the USA" sticker.


Mattress

The mattress is constructed with durable quality materials to provide reliability and comfort. An added safety feature includes a 2" safety foam base to prevent the patient from bottoming out. The microAIR 60 series mattresses come equipped with a dual layer quilted cover which moves with the patient to prevent friction and shear. It is also anti-microbial and fluid resistant. In addition, the cover is vapor permeable which allows heat to escape for a much more comfortable sleeping surface for the patient.


Wireless Auto Fowler

When the bed is articulated 45 degrees, the transmitter in the head section of the mattress signals the control unit to increase the pressure in the mattress to prevent the patient from bottoming out. This saves the caregiver time and effort to manually adjust the pressure when the patient wants to sit up.transmitter in the

Fire Sock

An added safety feature to all of our powered mattresses is a sewn in fire sock. All of the mattresses are compliant with federal fire regulations, meeting 16 CFR 1633 and 16 CFR 1632  standards.

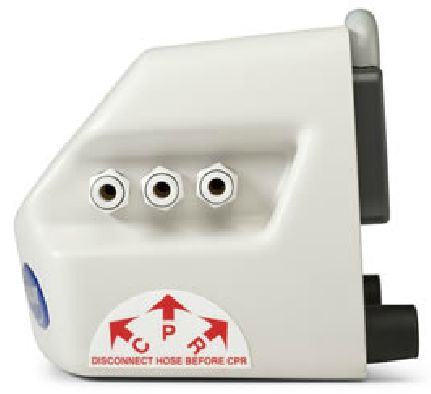

MA65 Pump Side View

Ninety degree, quick hose connector simplifies set up with one motion. Easily snaps into place for quick and easy set up. Quick release hose can also be used as a CPR release.

Power Unit Plugin

Power is generated by inserting the cable into the plug on the left hand side of the unit. The replaceable fuses are also contained on this side.


For more specific product information, visit the MA65 product page or MA65 Bariatric product page.





50 Series Mattress

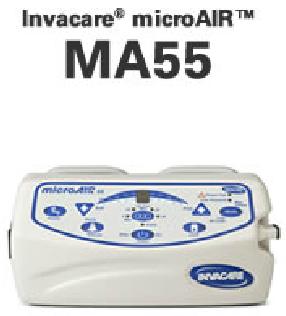

MA50/1 & MA55 Pump

  • MA50 - Alternating pressure overlay

  • MA51 - Alternating pressure mattress replacement system

  • MA55 - Alternating pressure and on-demand low air loss mattress replacement system

All pumps include the following:

  • Powered by a compressor with 4 alternating time cycles

  • 8" mattress with choice of alternating pressure or static therapy

  • Max inflate, visual and audio alarm and lockout features

  • Manual fowler button adds air into the mattress to prevent bottoming out when bed is articulated

Mattress

The mattress is constructed with durable quality materials to provide reliability and comfort. An added safety feature includes a 2" safety foam base to prevent the patient from bottoming out (except on the MA50). The microAIR 50 series mattresses come equipped with a dual layer quilted cover which moves with the patient to prevent friction and shear. It is also anti-microbial and fluid resistant. In addition, the cover is vapor permeable which allows heat to escape for a much more comfortable sleeping surface for the patient.

Fire Sock

An added safety feature to all of our powered mattresses is a sewn in fire sock. All of the mattresses are compliant with federal fire regulations, meeting 16 CFR 1633 and 16 CFR 1632  standards.


Backside View of Power Unit

The power unit securely fits overtop bed ends using the durable holders. The backside of the power unit also contains rubber stoppers to hold the unit in place. Each model contains the serial number on the back and proudly displays a "Made in the USA" sticker.


MA50/51 & MA55 Pump Side View

Ninety Degree, quick hose connector simplifies set up with one motion. Easily snaps into place for quick and easy set up. Quick release hose can also be used as a CPR release.

Power Unit Plugin

Power is generated by inserting the cable into the plug on the left hand side of the unit. The replaceable fuses are also contained on this side.


For more specific product information, visit the MA50 product page, the MA51 product page or the MA55 product page.
